Our services

A complete path from existing site to finished, certified design. We work across two connected areas.

Discuss your project
View projects

01  LASER SCANNING 02  3D CAD DESIGN

KIALLA WEST · VIC 3631

01 · 3D CAD Design

Concepts, certified designs & shop-ready drawings

We turn site data and your brief into concept models, certified designs and fabrication drawings.

01

Concepts

Greenfield and brownfield site, plant and machinery concepts, with models, videos and animations

02

Drawings

Detailed 2D machinery and plant fabrication and installation instructions and diagrams

03

Certify

FEA structural analysis with independent certification

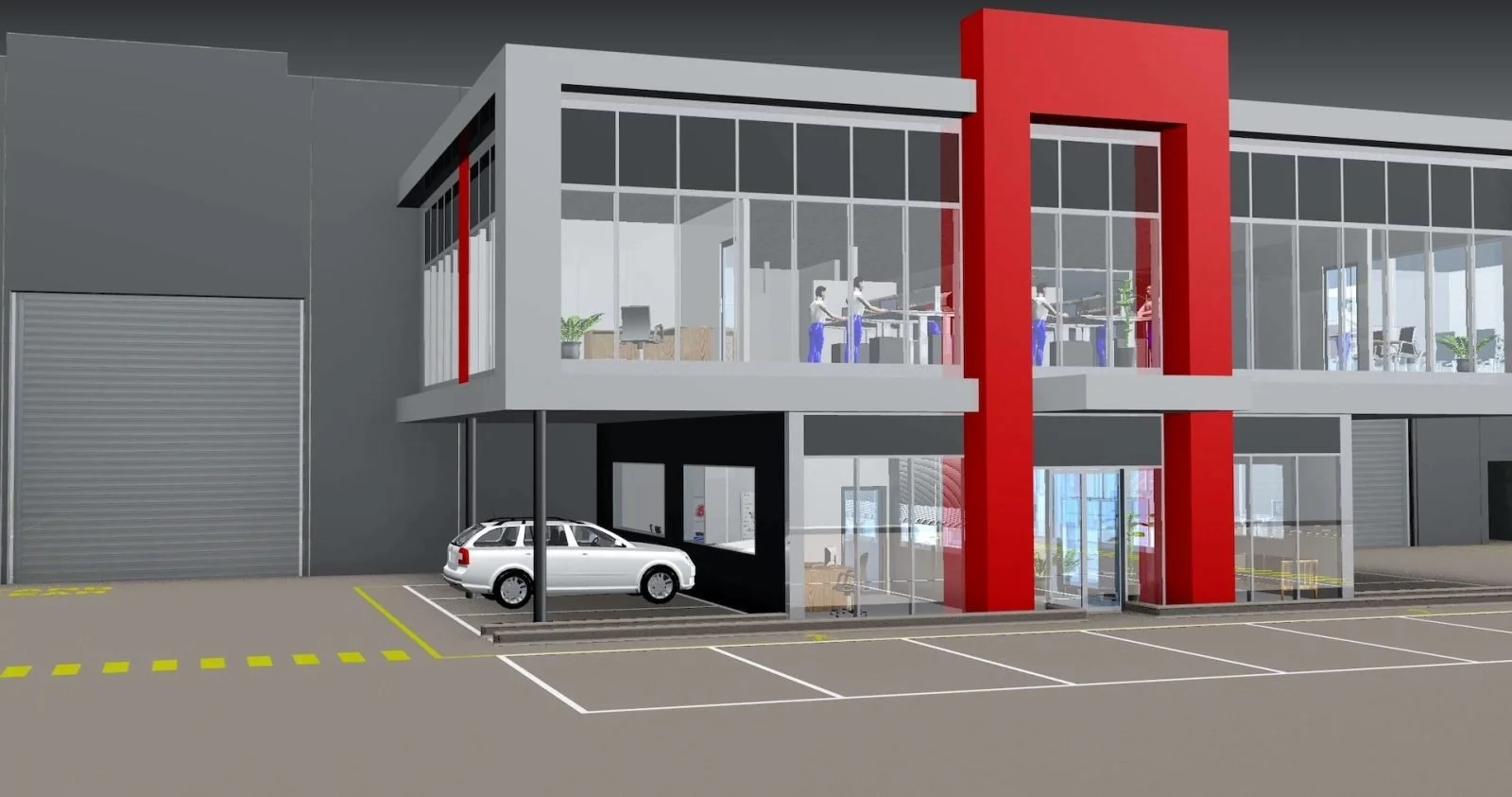

A modern two-story building with large glass windows, red structural accents, and a parking area in front with a white car parked.

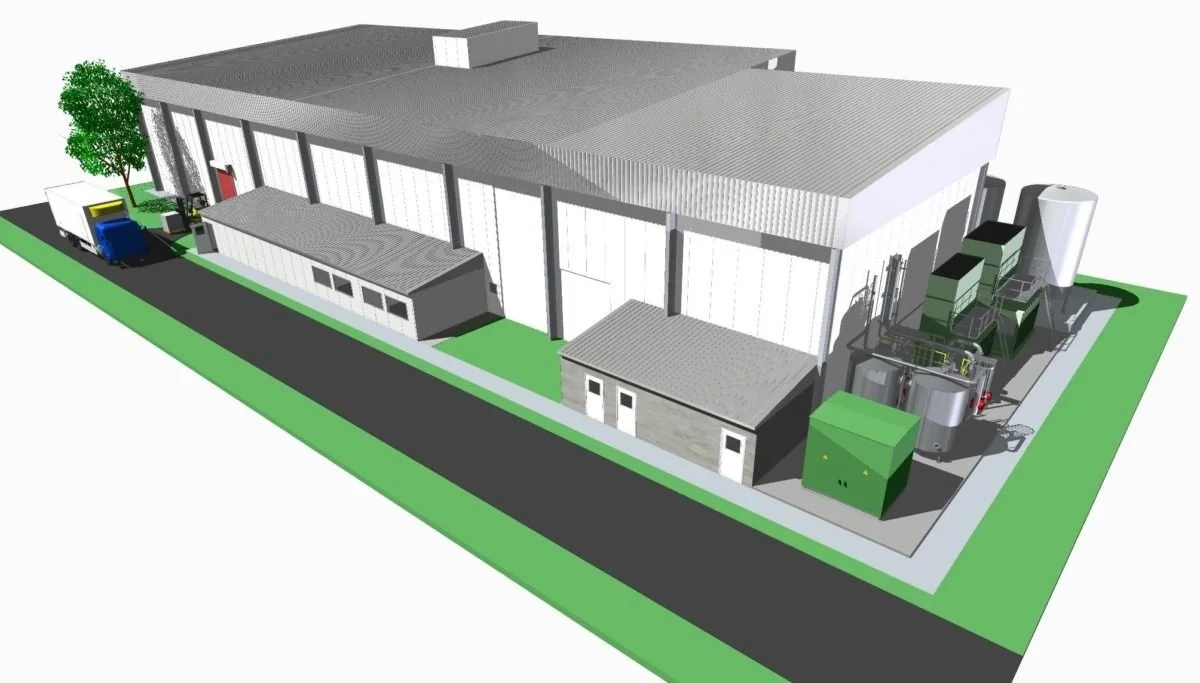

3D rendering of an industrial building with equipment, storage tanks, and delivery trucks outside
A detailed technical sketch of a mechanical system with various interconnected parts, including gears, levers, and tubes, possibly a robot or machinery prototype.

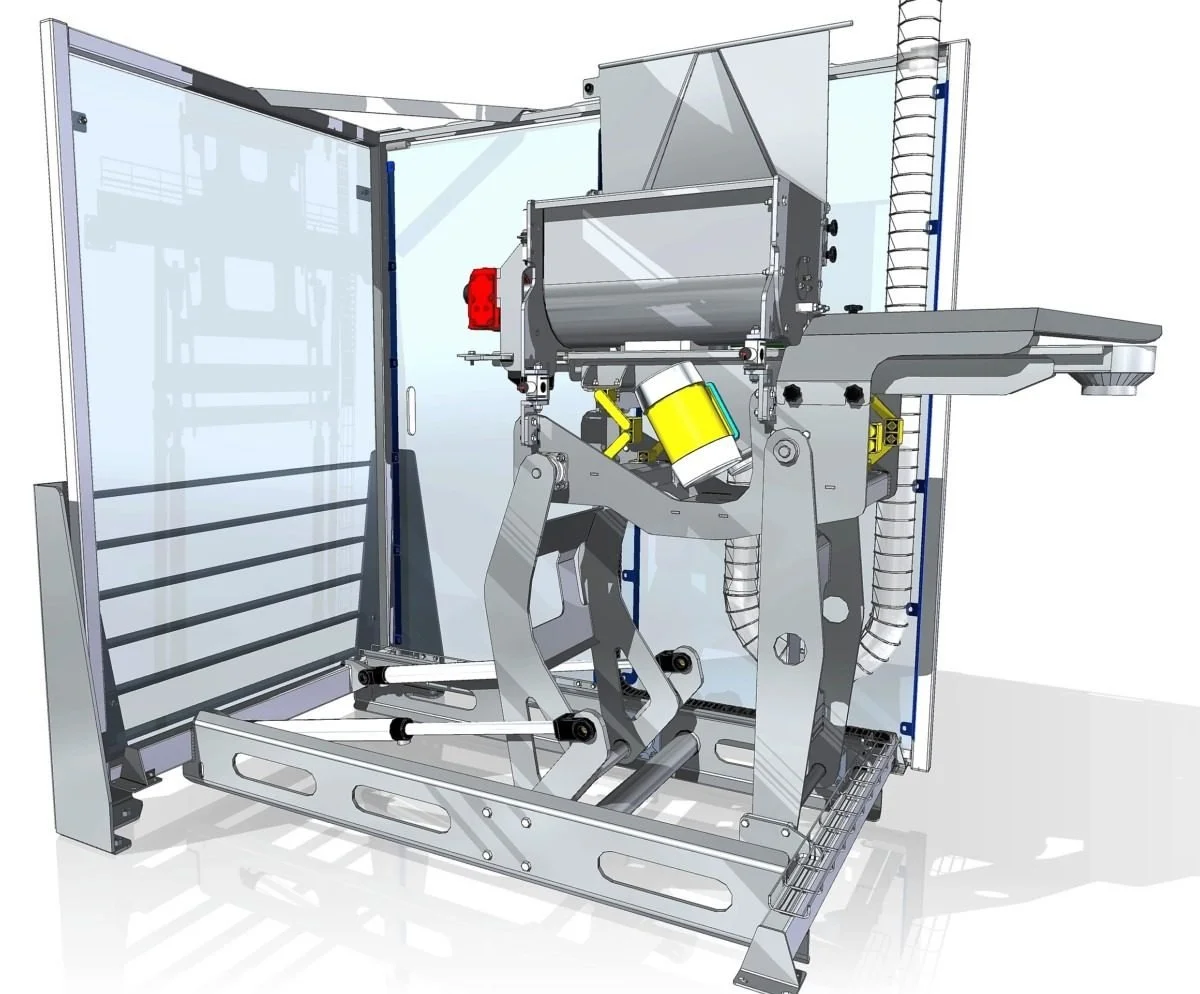

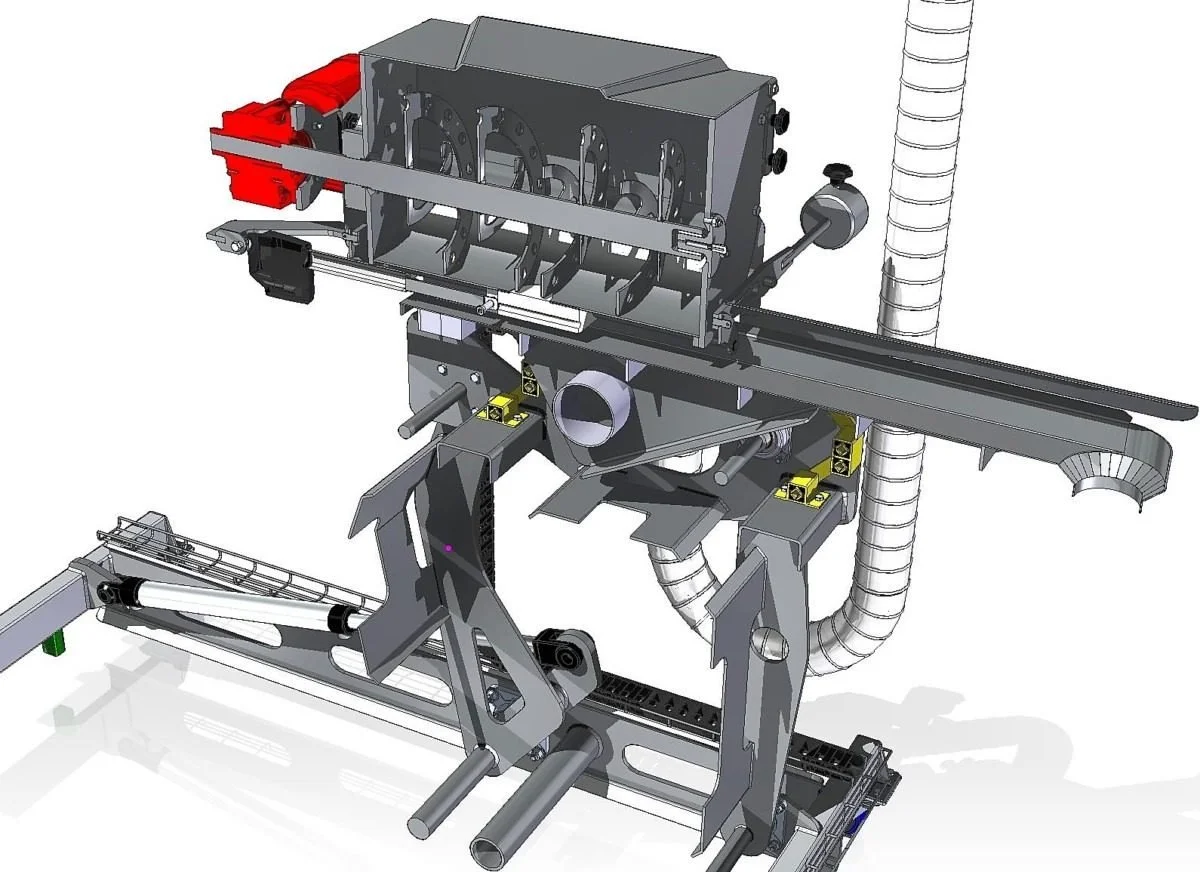

A detailed technical illustration of a robotic system inside a metal frame with various mechanical and electronic components, including a robotic arm, a control box, and connected wiring.

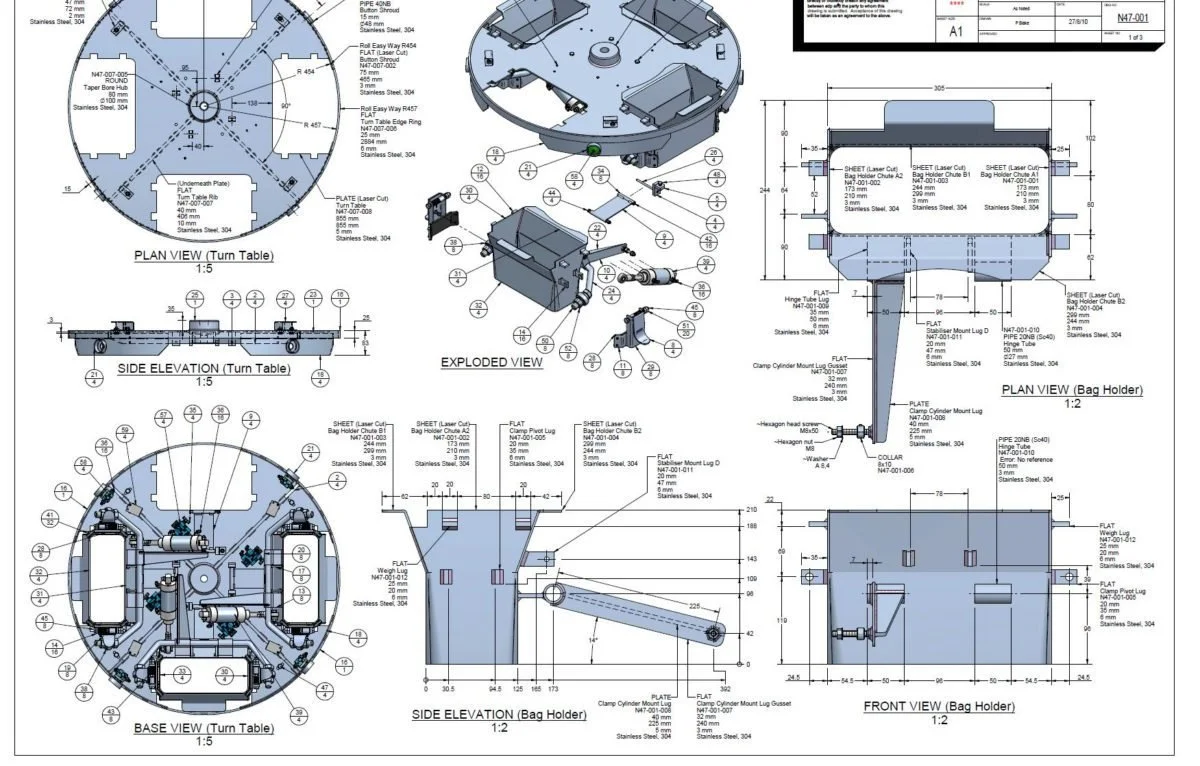

Technical engineering drawings of a turntable and bag holder, including plan views, side elevations, exploded views, base views, front views, and detailed dimensions.

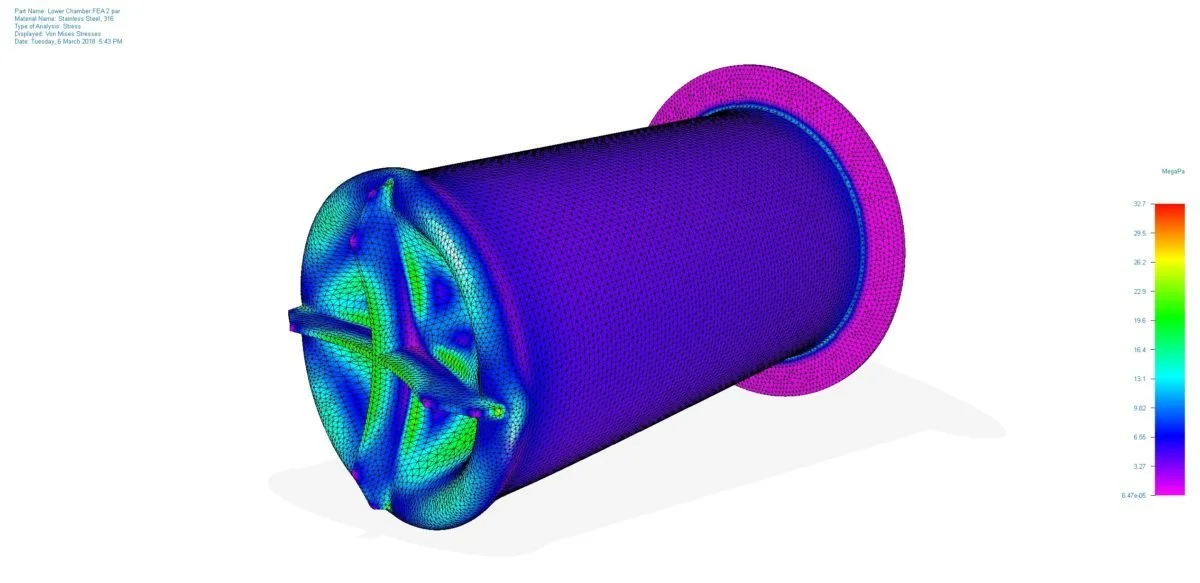

Color-coded finite element analysis diagram of a cylindrical stainless steel canister with a flanged end and internal structural supports, used for stress and pressure testing.

02 · 3D Laser Scanning & Photogrammetry

Fast, accurate capture, indoors and at height

High-resolution capture of existing sites and plant, turned into usable point clouds, models and plans.

01

Scanning

Terrestrial laser scanning: high-resolution point cloud, mesh, orthophoto, sectional views, overview mapping and video outputs

02

Drone

CASA-licensed and insured industrial drone operation for safe inspection at height

03

Mapping

High-resolution mapping and 3D modelling of sites, structures and plant

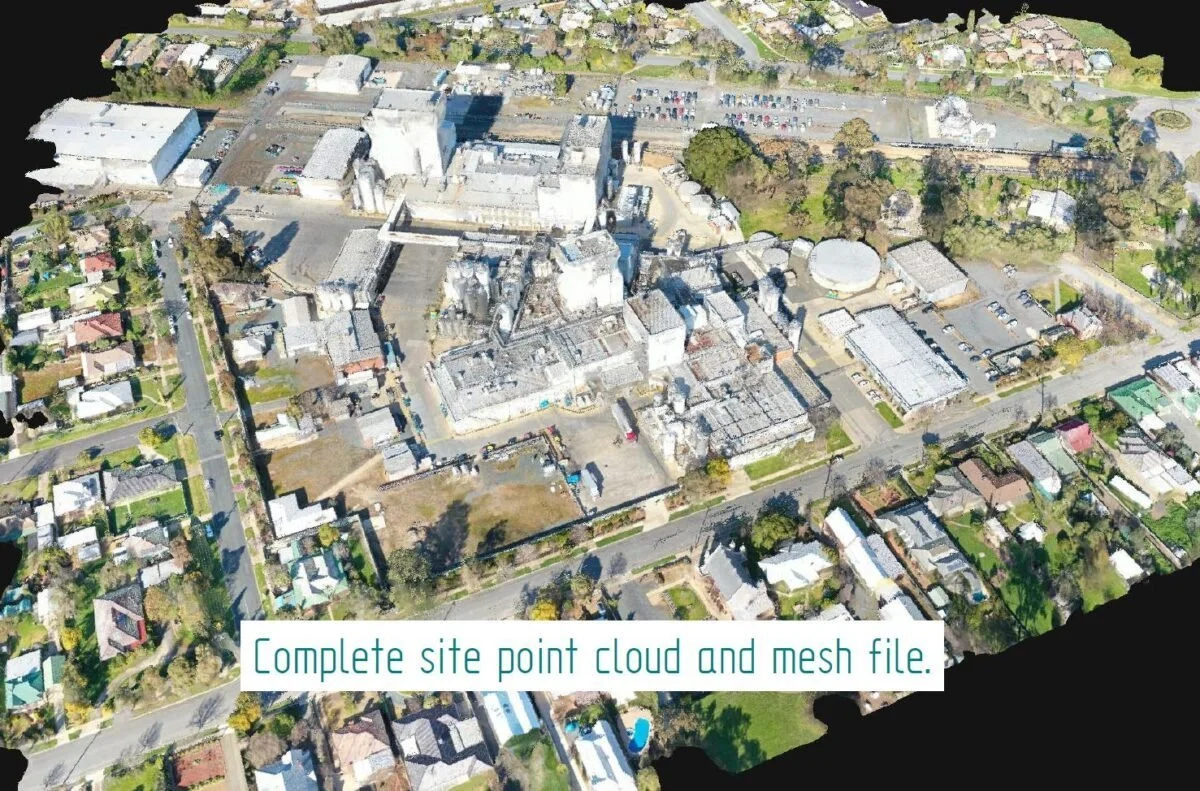

Aerial view of a suburban neighborhood with a large industrial or institutional complex in the center, surrounded by smaller houses and streets, with green trees and open spaces.

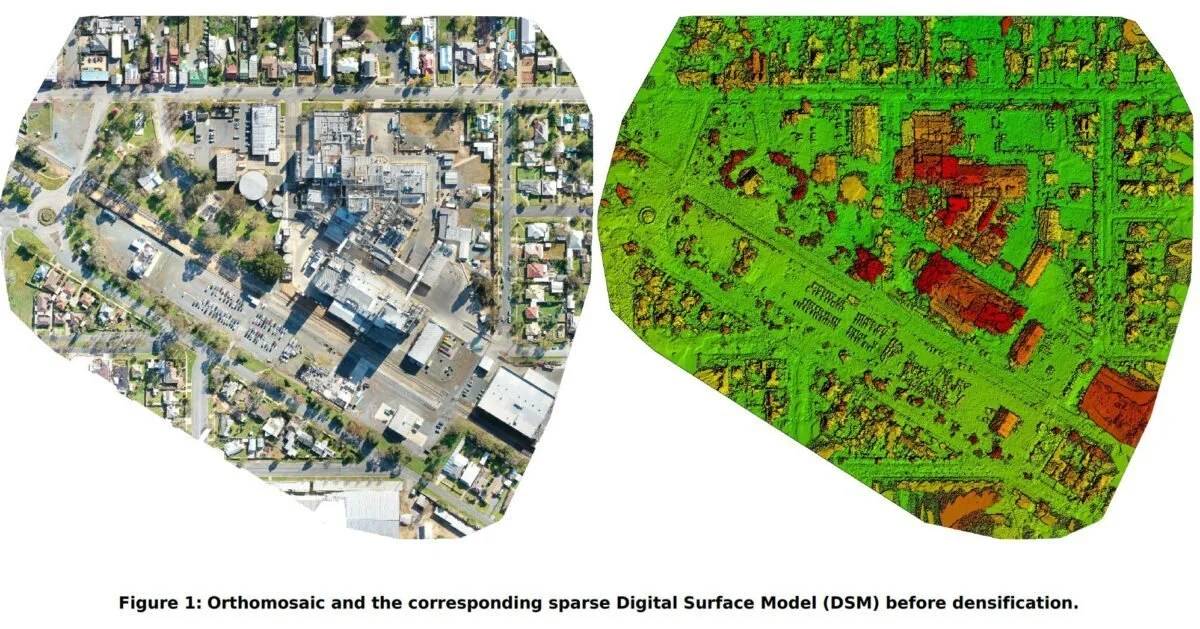

An aerial view of an urban area showing buildings, roads, and trees. Next to it is a digital surface model (DSM) with a color-coded representation indicating vegetation density and building heights.

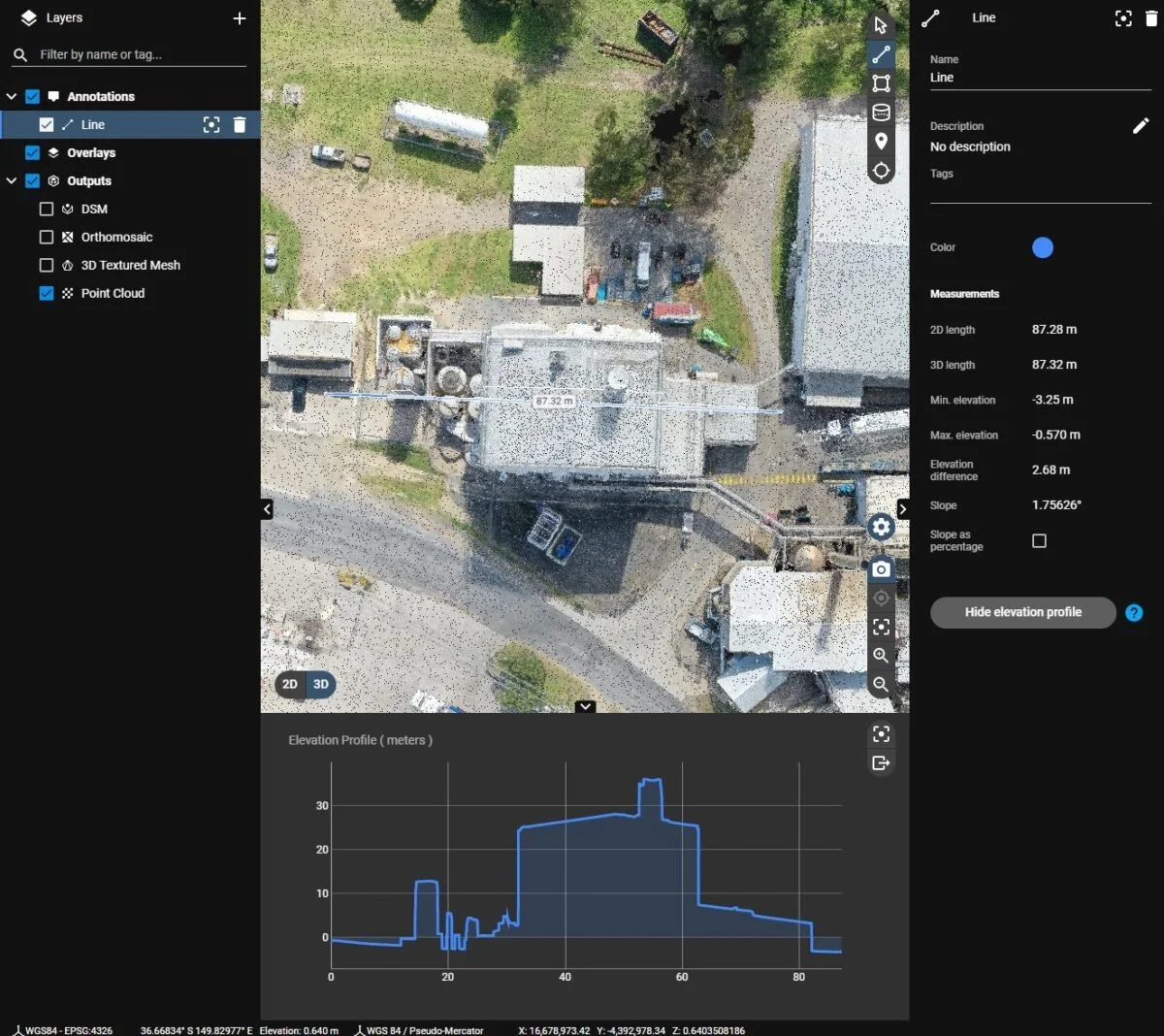

An aerial view of a building with equipment on the roof, surrounded by trees, vehicles, and other structures. It shows a measurement line indicating a distance of 87.32 meters across the roof.

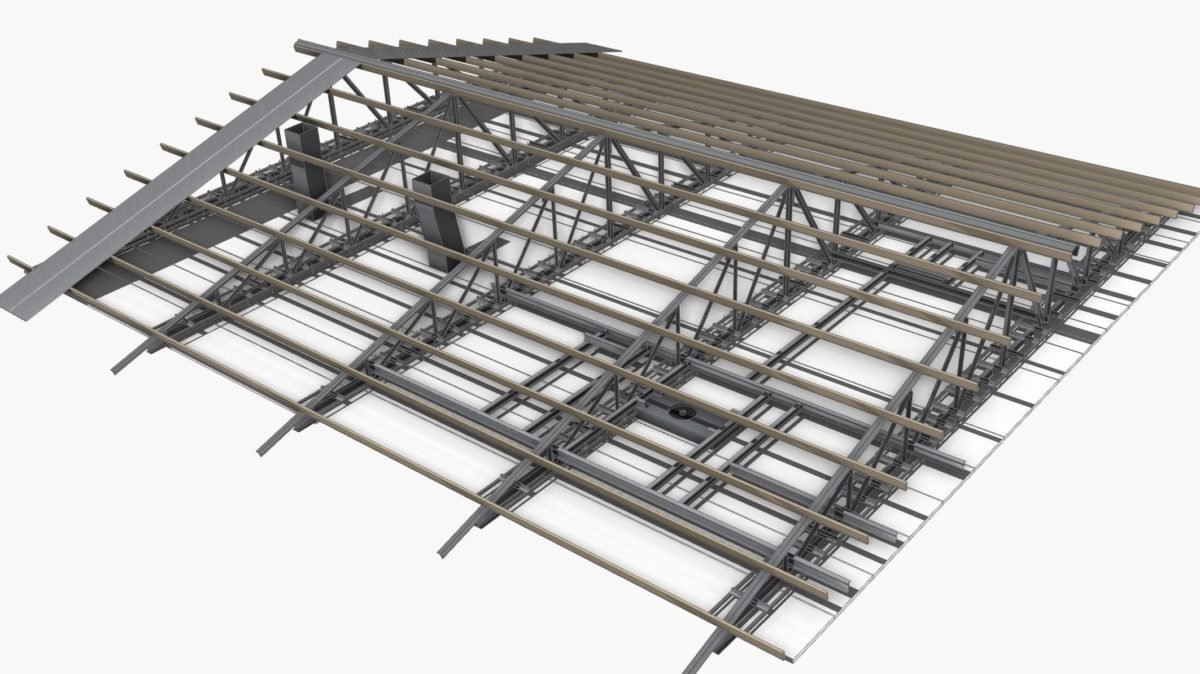

3D rendering of a building's roof framework with wooden beams and metal supports under construction.

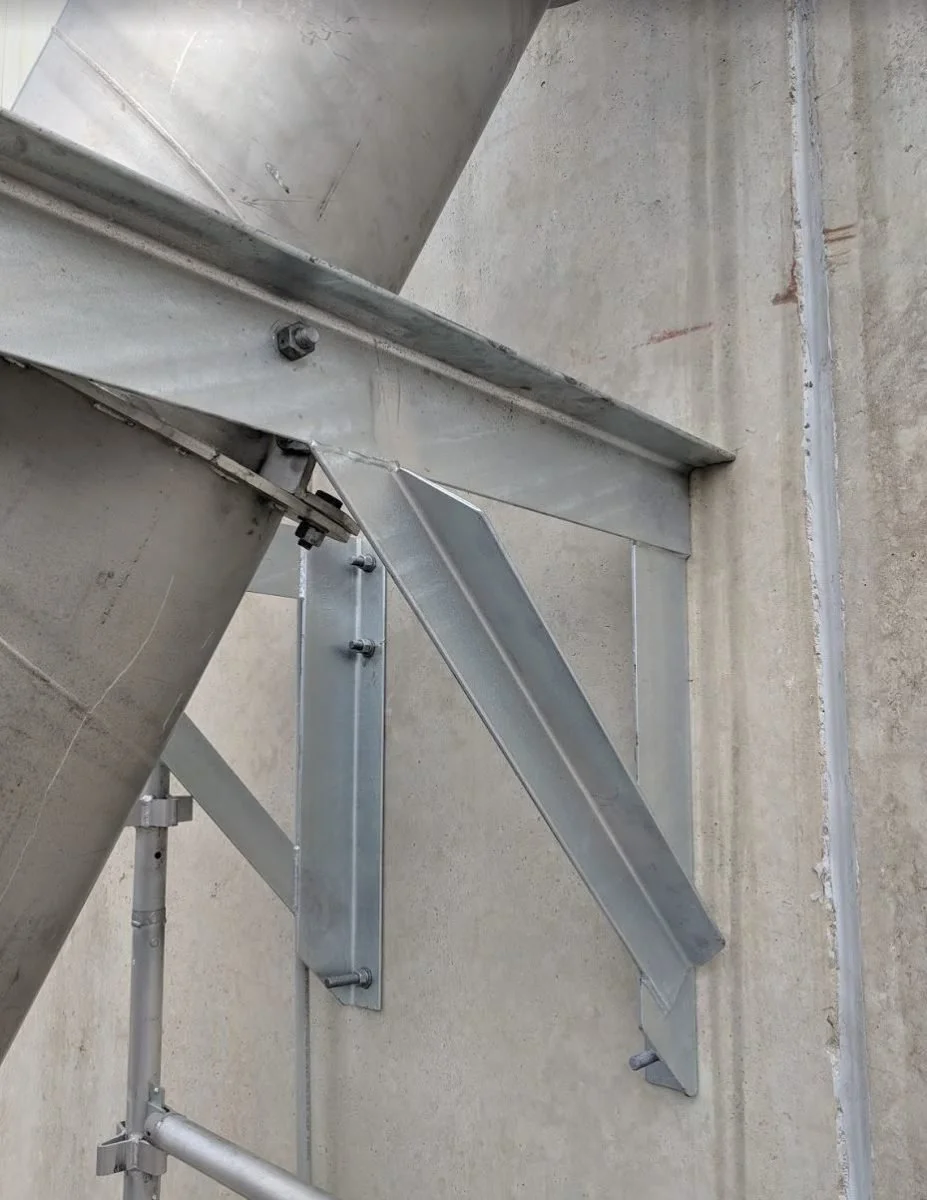

Metal framework with a large metallic pipe and supporting braces attached to a concrete wall.

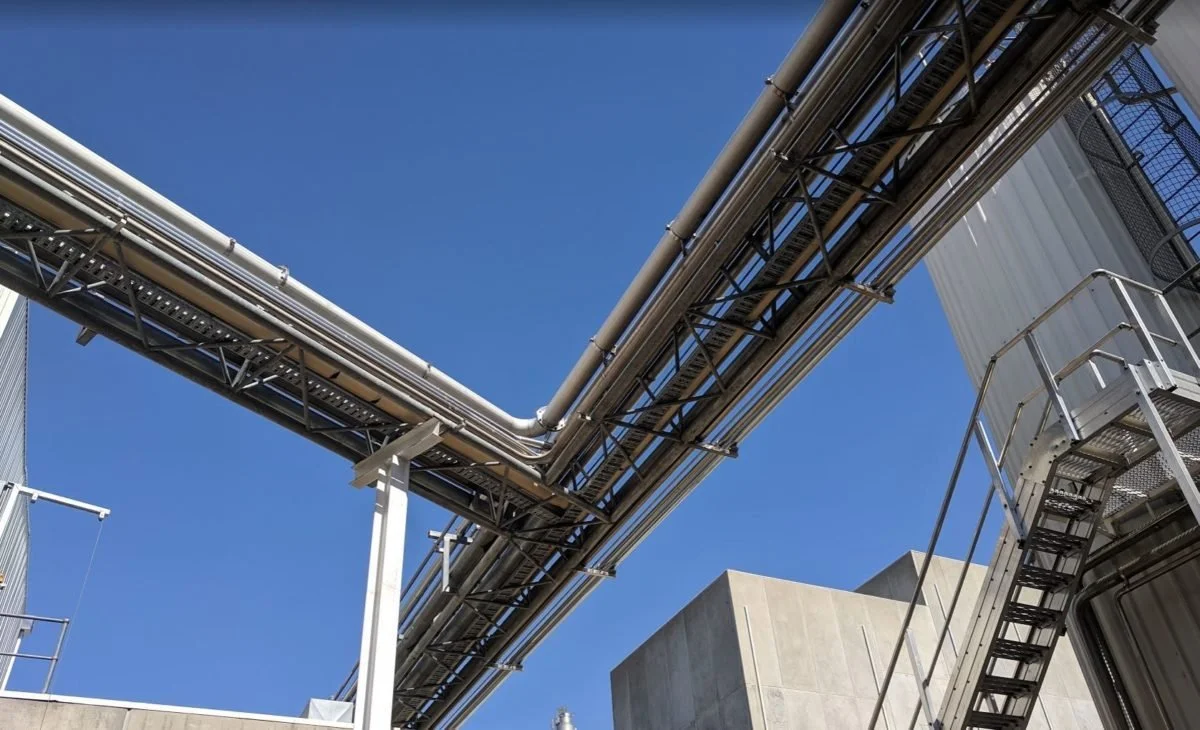

Industrial pipes and metal staircases against a clear blue sky.

Who we work with

Built for the food bowl

Food processing and the services that support it, across the Goulburn Valley.

DAIRY

Fruit & vegetable

Wine

Poultry

Ice

// Get started

Have a project or a site that needs capturing?

Call 0432 629 588 or send us the details.
